Digital Print Layout

Background

The Digital Print layout outlines those jobs which require digital print processes, and shows the status of the antecedent/connected processes.

Additionally from within this layout users can, record that the digital print process is started, paused, or completed, as well as record the quantities successfully processed, scrapped, and any mistakes

At the end of all production processes on a job order, this layout allows you to access data entry to record the final amount produced.

Note: There are numerous digital print layouts. They are functionally identical, with the only difference being they may show a sub-set of the data based on a particular criteria - for example, show only digital print processes for a specific machine name or for a specific date required

About this task

This topic will instruct you how to navigate to, understand the contents of, and the actions allowable from, the Digital Print layout.

Prerequisites

Ensure that:-

You have logged onto strokeone, and that you can see and access the Digital Print button in strokeone home banner.

Procedure

From the home banner, click Digital Print.
Rather than see all the digital print process line records (which could be a very large quantity), you will be presented with a further choice as to which sub-set of this total found-set of digital print process line data to display.
Essentially, the found-set can be filtered down by two dimensions - the machine name that the screen print process is scheduled on or the date on which the process is scheduled.
1. If you wish to see data for a specific screen print machine, click the applicable machine name button (1)
2. Conversely, to see screen print process lines for a specific date required, click the corresponding date button (2).
  By default, the date choice button are:-
  - Today
  - Tomorrow
  - Today+2
  - Today+3
The Digital Print list layout opens, filtered according to the criteria selected in step 3).

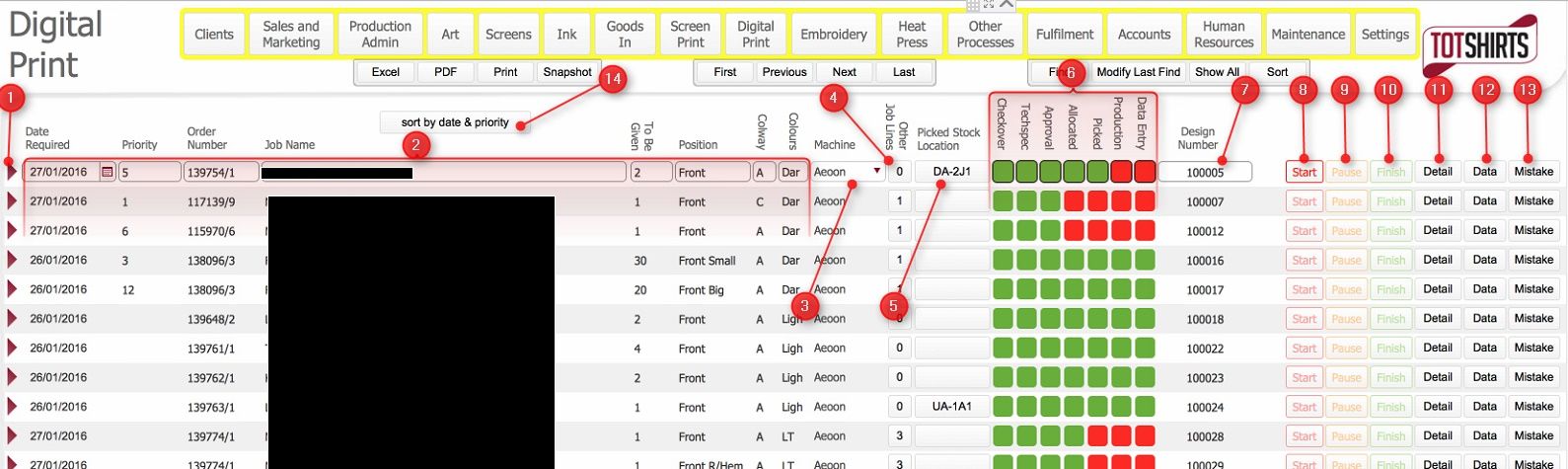

(Note: In the below sections/text, the numbers in (bold parenthesis) refer to the annotations in the above screen-shot)

By default, the records displayed are sorted by ascending value of the Date Required field.

Note: Records are displayed according to how the resource allocation records were created for the process line.
That is, if several resource allocation records were created for single process line, then several process line records will be shown in this layout.

Layout Composition & Actions Permissible

The layout is composed of the following elements

(1) Click on the open record icon to drill down to the Job order Detail form.
(2) Data Fields for the Process Lines that require Digital Printing.

Field	Comments
Date Required	The date by which this print process needs to be completed This date is taken from the scheduling date that was initially recorded for this process line when the job order was written up. Note: You can click on this calendar icon besides this field to amend the date as required.
Priority	This is a text field to allow production managers to apply a numeric priority to the processes. The layout contents can then be sorted by priority for a given day, and the print run prioritised accordingly. When you have entered priorities you can use the sort by date and priority button (14) to manage workload.
Order number	The internal reference number for the job order which has this digital print process on it.
Job Name	Job name is a concatenation of the category and description fields taken from the job order. These two fields provide information as to which group the job order is for, and what the actual content of the job order is.
To Be Given	TBC: * label name s/b Qty ? This is the quantity of items scheduled for the digital print process on this machine. This number is taken from the quantity field of the process lines resource allocation record.. This number can be overwritten if necessary. For example, consider a situation where the quantity to be printed was 10,000, and was scheduled across two days, with 7,000 on day 1 and 3,000 on day two. It might not be logistically possible to print 7,000 on day one, so the quantity for day 1 could be overwritten to be 5,000; consequently, the quantity for day 2 would need to be adjusted. TBC: Ability to add in a process line entry in this layout needed - e.g. consider the above scenario, where job would need 3 days - need ability to add a new line to record day 3 amounts. Note this could be done by adding in another schedule record on the production admin layout.*
Position	The physical position of where on the garment, the digital print will be occur. This is taken from the job order process line details.
Colour Way	The ColourWay for the Digital Print process line
Colours	The type of colours in this Digital Print process line

(3) Machine button -This details the machine that the digital print process is scheduled to occur on.
You can move the print process to another machine, by clicking on this field, and selecting another machine from the drop-down.

(4) Other Job Lines button: This button label denotes how many process lines in addition to the current one are associated to the job order number. For example if it reads 2, it means there are three process lines in total associated to this job. This provides a quick visual reference to aid scheduling and gauge effort and resources required to complete the job.

Clicking on this button will display a pop up showing all the process lines on the job order.

Click for example

(5) Picked Stock Location: This denotes the current physical location of the blank garments which have been picked ready for the digital print process. This location is updated when picked garments are moved to the machine and the print process started.

(6) Status Icons:this section contains a series of icons that denote the current status of various processes connected to the print screen process.
These can be summarised as follows:-

Icon Label	Comments
Checkover	Indicates the checkover state of the Artwork record for the image that will be printed.
TechSpec	This shows the state of the raised flag on the associated technical specification for this print screen process.
Approval	The approval status for the process line.
Allocated	The status of blank garments allocated to the whole job order.
Picked	Denotes the status of blank garments picked for the whole job order.
Production	The status of the digital process itself. This is updated when the print process is started, paused or completed.
Data Entry	When the last process line on a production order completes, the final quantities produced are recorded. This status light denotes the status of recording that data entry.

(7) Design Number:This lists the technical specification number for this digital print process.

(8) to 10) Process Activity Buttons:

These three buttons record the process activity

Button Label	Comments
Start	Marks the Digital Print process as started
Pause	Marks the Digital Print process as paused
Finish	Marks the Digital Print process as completed. Note: upon completion of the last process line on a job, you need to record the final quantities produced.

(11) Detail button: this will display a detail pop up window with a series of related data,

(12) Data button: This is used when the final process for a job order is completed to record the quantities of product produced for the job order.

(13) Mistakes button: This is used to record mistakes on the process line.

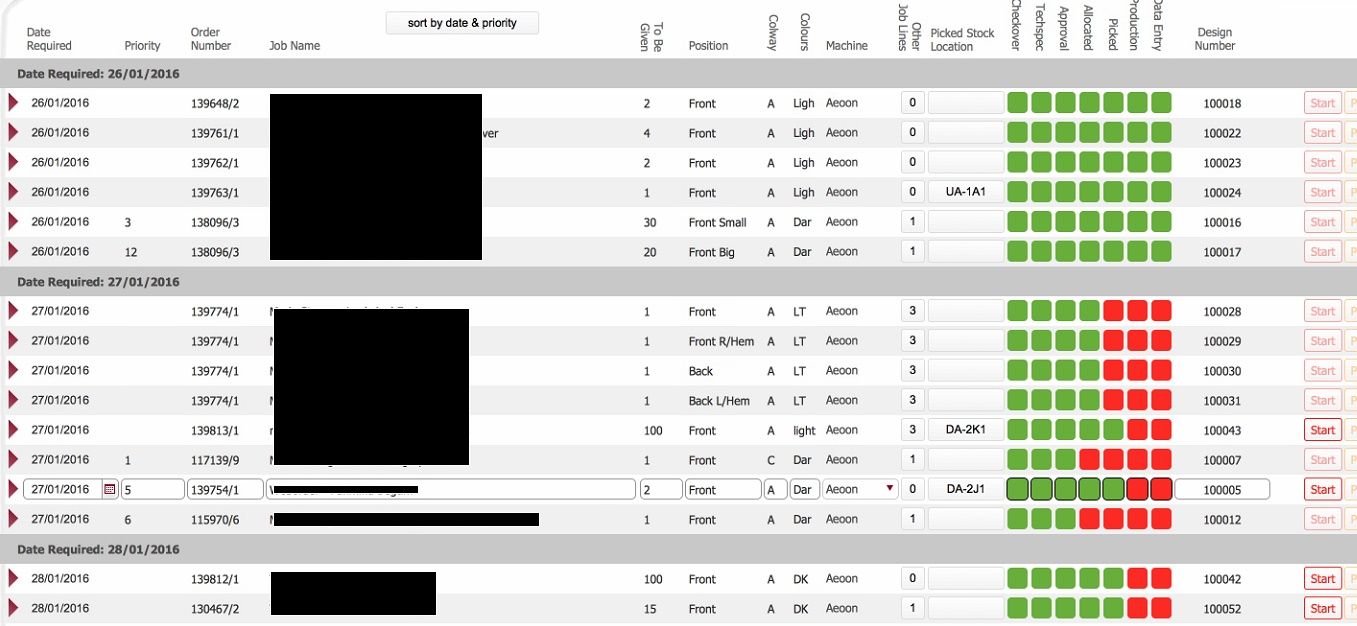

(14) Soft by Date and Priority Button:Clicking this button will sort and group the foundset by Date Required and ascending priority

click for example

Field	Comments
Date Required	The date by which the process needs to be completed
Quantity	The quantity that will be subject to the process
Position	The position (if applicable) where the process will be applied.
Process Line	Name of the Process line
Job Name & Position	Concatenation of job order category & description & position
